11 kV Audio-Visual Soft Discharge & Earthing Rod
11 kV Audio-Visual Soft Discharge & Earthing Rod
Telescopic 11 kV earthing and discharge pole with LED audio-visual indication and an ON/OFF switch — resistance-controlled soft discharge of residual and induced voltage.
About 11 kV Audio-Visual Soft Discharge & Earthing Rod
The 11 kV Audio-Visual Soft Discharge & Earthing Rod safely discharges residual, static or induced voltage from isolated lines, HT cables, transformers and other electrical equipment, minimising the risk of electric shock during shutdown and maintenance work.
Discharge current is limited through a built-in encapsulated resistor chain, so energy bleeds down in a controlled soft discharge rather than a violent arc. A high-visibility LED pair and a loud buzzer confirm the discharge to the operator, and an ON/OFF switch lets the indication be armed only when it is needed.

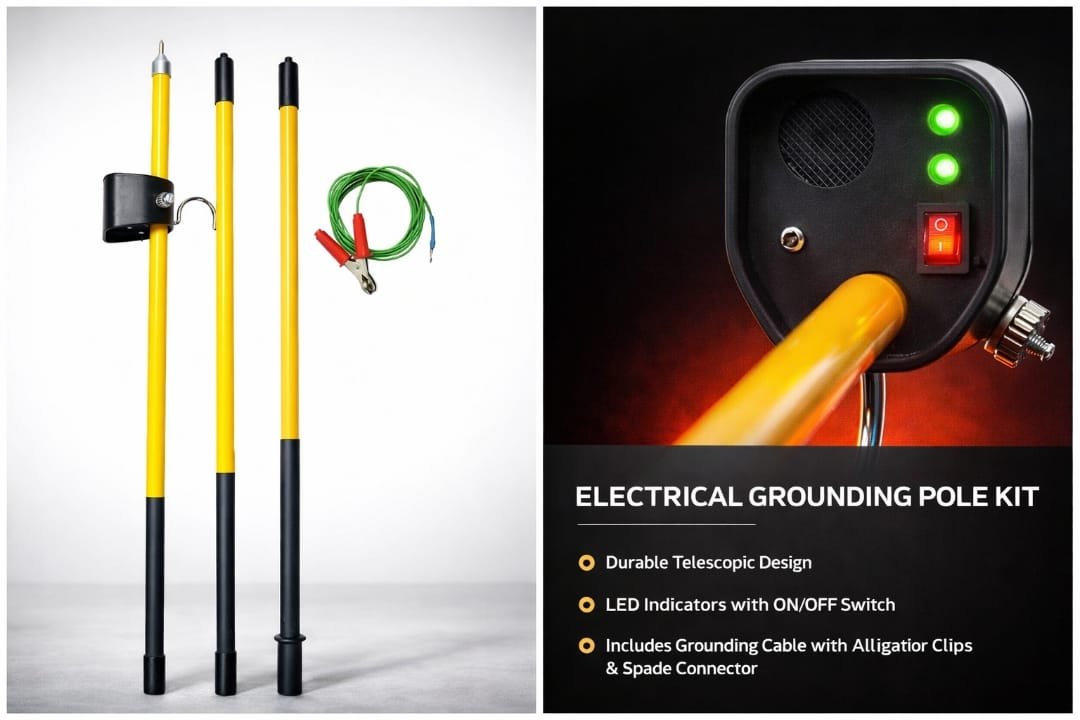

The pole is built on the same high-dielectric fibreglass / FRP platform as our live line testers, with a non-slip insulated grip, hand guard and sectional rods that extend up to 3 metres for overhead work.
Key Features & Benefits
- Controlled soft discharge — a built-in encapsulated non-inductive resistor chain limits discharge current for total operator safety.
- Audio-visual indication — twin high-visibility LED lamps and a loud buzzer give clear confirmation that discharge is taking place.
- Operator-controlled indication — panel-mounted ON/OFF rocker switch on the head arms the audio-visual circuit only when required.
- Durable telescopic design — sectional fibreglass / FRP rods extend up to 3 metres for overhead applications and pack down for transport.
- Complete earthing set — 5 m highly flexible copper grounding cable supplied with alligator clips and spade connector.
- All-weather suitability — dependable field performance indoors and outdoors, in dry and humid conditions.
Applications
- 11 kV HT panels and switchgear maintenance (VCB, SF6 and similar).
- Power and distribution transformer maintenance.
- HT cable testing and termination work.
- Overhead transmission and distribution lines.
- Substation shutdown work and capacitor bank discharge.
Specifications — Soft Discharge Section
| Rated Voltage | 11 kV DC |
|---|---|
| Application Area | HT cable, transformer, switchgear, busbars and capacitor banks |
| Discharge Method | Non-inductive resistance controlled (safe soft / damp discharge) |
| Discharge Capacitance | 10 µF |
| Indication | Twin LED lamps and buzzer, with ON/OFF rocker switch |
| Earthing Cable | 10 sq.mm highly flexible copper cable |
| Earthing Lead Length | 5 metres |
| Earth Clamp | Heavy-duty clamp with alligator clips and spade connector |
| Operating Temperature | −5 °C to +70 °C |
Specifications — Mechanical, Safety & Compliance
| Dielectric Strength Test | 1 metre rod tested up to 100 kV AC at CPRI |
|---|---|
| Body Material | High-quality fibreglass / FRP rod |
| Base Rod Length | Approx. 750 mm to 1.5 metres |
| Extension Rod | Extendable up to 3 metres for overhead applications |
| Diameter | Approx. 32 mm |
| Handle Type | Non-slip insulated grip with hand guard protection |
| Enclosure Protection | Shock-resistant indicator housing and durable insulated body |

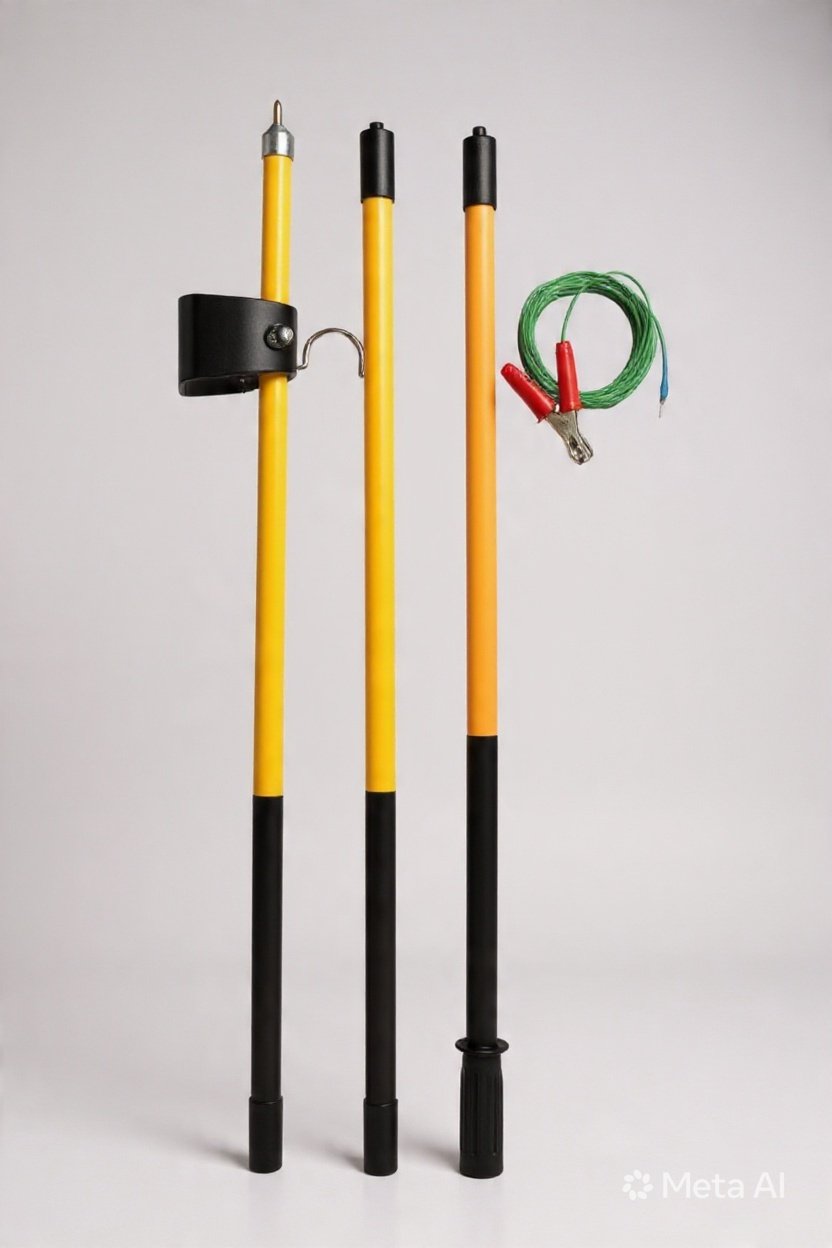

Specifications — Typical Kit Contents
| Main Unit | Audio-visual soft discharge head with integrated earthing hook |
|---|---|
| Sectional Rod System | Extendable up to 3 metres |
| Earth Cable | 5 m heavy-duty copper cable with alligator clips and spade connector |
| Proving Unit | For pre- and post-use validation checks |
| Carrying Case | Heavy-duty weather-proof case / bag for safe transport |
