11 kV Live Line Neon Tester & Soft Discharge Rod (Two-in-One)
11 kV Live Line Neon Tester & Soft Discharge Rod (Two-in-One)
Two-in-one 11 kV safety pole — live-line neon voltage detection and resistance-controlled soft discharge of residual and induced voltage in one lightweight unit.
About 11 kV Live Line Neon Tester & Soft Discharge Rod (Two-in-One)
This innovative and advanced equipment is specially designed to enhance operator safety and operational efficiency during high-voltage maintenance work. It combines two essential safety functions into a single, compact and lightweight unit.
As an 11 kV live line indicator it accurately detects the presence of voltage in high-voltage lines and equipment, ensuring operator safety before any maintenance activity begins. Its built-in 11 kV soft discharge rod then safely discharges residual, static or induced voltage from isolated lines, HT cables, transformers and other electrical equipment, minimising the risk of electric shock.
The instrument is manufactured against the specific operational requirements of power utility safety departments using high-quality materials. It was provided to field utility staff for trials, and its performance was validated as highly satisfactory.
Key Features & Benefits
- Dual-function design — integrates voltage detection and safe discharging into a single pole, minimising operator error and tool handling time.
- Controlled soft discharge — limits the discharge current through a built-in encapsulated resistor chain to ensure total operator safety.

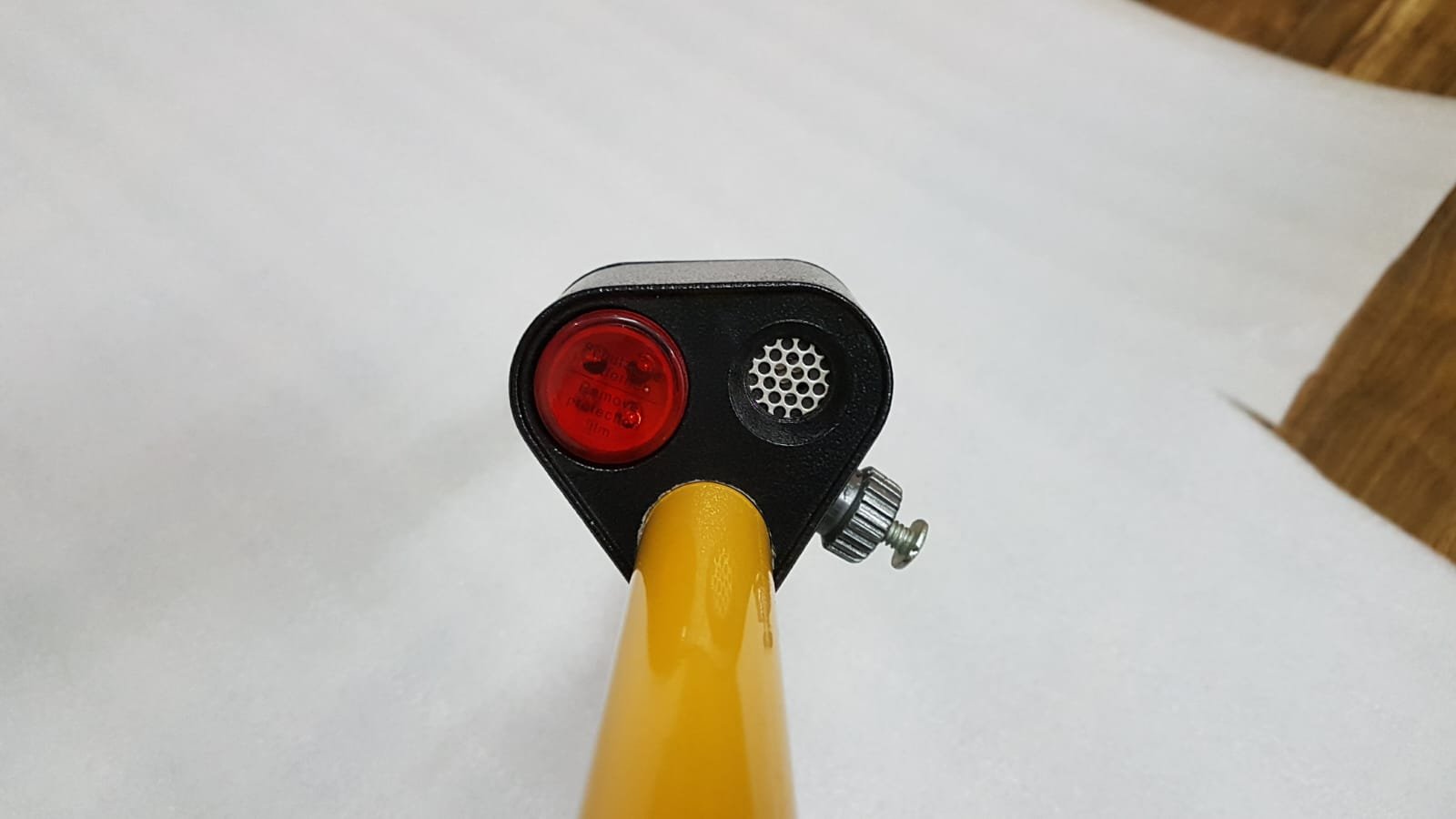

- Audio-visual indication — high-visibility neon lamp and a loud buzzer alert give clear voltage and discharge indication.
- Robust construction — high-dielectric fibreglass / FRP tube body, tested thoroughly for commercial deployment.
- All-weather suitability — dependable field performance indoors and outdoors, in dry and humid conditions.
Applications
- 11 kV HT panels and switchgear maintenance (VCB, SF6 and similar).
- Power and distribution transformer maintenance.
- HT cable testing and termination work.
- Overhead transmission and distribution lines.
- Substation shutdown work and capacitor bank discharge.
Specifications — Live Line Neon Tester Section
| Rated System Voltage | 11 kV |
|---|---|
| Working Principle | Neon indication and buzzer for presence of voltage |
| Threshold Voltage | Approximately 500 V |
| Measuring Range | Up to 11 kV |
| Interference Immunity | High immunity against external electromagnetic fields |
| Body Material | High-quality fibreglass / FRP rod |
| Operating Temperature | Approx. −25 °C to +50 °C |
Specifications — Audio-Visual Soft Discharge Rod Section
| Rated Voltage | 11 kV DC |
|---|---|
| Application Area | HT cable, transformer, switchgear, busbars and capacitor banks |
| Discharge Method | Non-inductive resistance controlled (safe soft / damp discharge) |
| Discharge Capacitance | 10 µF |
| Earthing Cable | 10 sq.mm highly flexible copper cable |
| Earthing Lead Length | 5 metres |
| Earth Clamp | Heavy-duty clamp for secure grounding |
| Operating Temperature | −5 °C to +70 °C |
Specifications — Mechanical, Safety & Compliance
| Dielectric Strength Test | 1 metre rod tested up to 100 kV AC at CPRI |
|---|---|
| Base Rod Length | Approx. 750 mm to 1.5 metres |
| Extension Rod | Extendable up to 3 metres for overhead applications |
| Diameter | Approx. 32 mm |
| Handle Type | Non-slip insulated grip with hand guard protection |
| Enclosure Protection | Shock-resistant neon housing and durable insulated body |

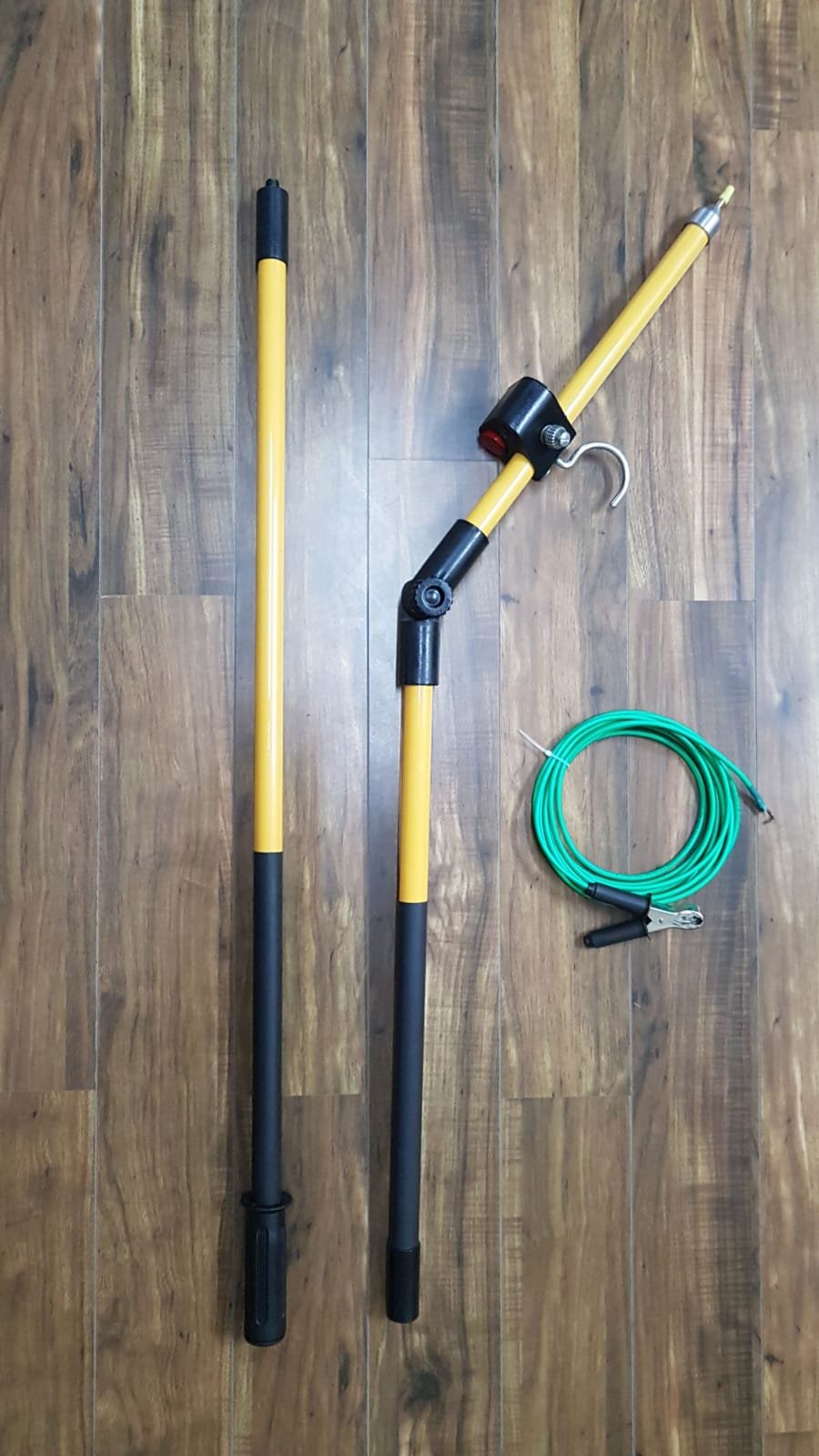

Specifications — Typical Kit Contents
| Main Unit | 11 kV live line neon tester and audio-visual discharge rod |
|---|---|
| Extendable Rod System | Up to 3 metres |
| Earth Cable | 5 m heavy-duty copper cable with earth clamp |
| Proving Unit | For pre- and post-use validation checks |
| Carrying Case | Heavy-duty weather-proof case / bag for safe transport |
